LQ-RPM 350 FLEXOGRAPHIC FLAT CUTTING MACHINE
|
LQ-RPM 350 FLEXOGRAPHIC FLAT CUTTING MACHINE |
|
| Control System | Huichuan Centrol System |
| Printing Spee | 150m/min |
| Die-cutting Speed | 130m/min (450times/min) |
| Max Sheet Width | 320mm |
| Supply Voltage | 380v |
| Max. Dia Winding | 700mm |
| Weight of the whole machine | 3200kg |
| Max. Dia Unwind | 700mm |
| Die-cutting Accuracy | 土0.10mm |
| Max. Die- cutting width | 300mm |
| Max. Die- cutting Length | 350mH |
| Total Power | 20kw |
This machine adopts China Huichuan control system and French Schneider low voltage electrical appliances. This machinehas uniform speed and stable tension. it has the acvantages of high automation, fast speed, stable pressure and accurateset position There are ooticnal functions such as siming, stamping and cutting.
Flexographic Printing Part
The flexo printing unit is easy to disassemble and adjust the rollers and squeegees, and the new "worm gear with helical gear" method is used to move and lock the whole printing group left and right, which has high efficiency and safety and stability at the same time. The inking device adopts a push-pull ink hopper system, and the anilox and ink rollers can be dismantled and installed quickly and easily, and the inking system can be changed and cleaned without any tools in a very short time. This is especially important for flexographic printing units using water-based inks and anilox rollers.

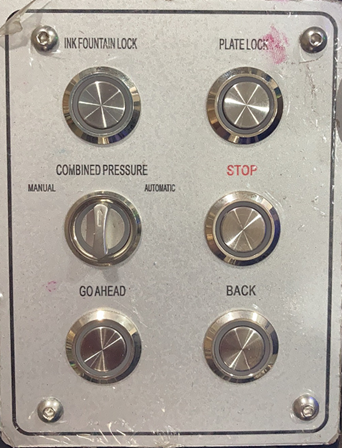

Composition of flexographic printing section
Machine floor space（L×W）：3800×1500
Foundation area (L×W): (3500+1000+1000) × (1500+1500+1000)
The foundation is made of reinforced concrete, thickness 50MM or more
